Fishing nets - Active fishing gear
Bagnets and dragnets
These nets are short and deep – the main difference from beach seine nets
Usage
- fishing from drained ponds and storage ponds actively
- fishing large amounts of fish in small water volumes
The principle is to catch fish while dragging the net through water with both ends
The usage of a bagnet and dragnet
- haul – the movement of the net throughout water is done by individuals
- net moves through the water column and catches fish
- fish are accumulated in the net during haul
- net creates a bag where fish concentrate during haul
- after the haul ends, the net is pulled to the boat
- net is pulled to the boat with caution to avoid damaging fish
- bagnet and dragnet are not used for pulling fish from water, or other fish manipulation
- fish are only removed with handling equipment
- hand net, dip net, fry dip net – according to fish size
Design
- polyamide knotless net with skewed mesh
- mesh size 6 – 30 mm
- thread thickness 1.4 – 2.5 mm (210/6 – 210/48)
- net is sewn into the shape of a bag – “net core”
- perimeter is strengthened with two mesh rows made from thicker thread
- upper and lower part of the net is threaded through with thick plaited ropes
- net has a buoyancy line with floats
- net has a lead line with sewn in weights
- net ends haves sewn/ attached wooden or metal poles
- poles – used for hauling the net and net depth regulation
- net ends have a heavy brace to which the pulling rope is attached
Net depth is regulated with boathook and poles
Function of boathook and poles during bagnet and dragnet usage
Boathook for bagnet and dragnet depth regulation
Usage
- regulates the depth of the lead line during haul
- prevents taking up mud into the net
- helps to more easily catch fish in the net
Wooden pole of adequate length is inserted into metal hook socket
Poles
Accessories for beach seine nets, bagnets and dragnets
Made from hard wood or metal
Usage
- controlling the net during haul
- net depth regulation during haul
Metal pole
Usage
- bagnets and dragnets exclusively used in storage ponds
Sizes
- equally thick throughout its length
- surface metallized
- diameter 38 mm
- total length 140 cm
- 80 cm height above the net
Small wooden pole
Usage
- beach seine nets, bagnets, dragnets
Sizes
- part above the net is narrowed for easier hand grip
- lower part 40 mm, upper part 35 mm
- total height 140 cm
- 90 cm height above the net
Large wooden pole
Usage
- large dragnets
Sizes
- part above the net is narrowed for easier hand grip
- lower part 50 mm, upper part 40 mm
- total height 180 cm
- 90 cm height above the net
Bagnet
- fishing from drained ponds and storage ponds actively
- fishing large amounts of fish from a small volume of water
Design
- short net with bag
- useful in drained ponds, fish storage ponds, channels
- bag depth is at most 1/3 of the width (e.g. 3 m width, 1 m depth)
- bag tapers to an equilateral trapezoid shape
Standardly made sizes of bagnets
| Mesh size in mm | Thread thickness | Size – width x depth in m | Measuring unit |
|---|---|---|---|
| 6 | 210/6 | 3 x 1, 6 x 2, 8 x 2, 10 x 2, 10 x 3 | piece |
| 10 | 210/18 | 3 x 1, 6 x 2, 8 x 2, 10 x 2, 10 x 3 | piece |
| 15 | 210/27 210/36 | 3 x 1, 6 x 2, 8 x 2, 10 x 2, 10 x 3, 12 x 4, 15 x 5 | piece |
| 20 | 210/27 210/36 | 3 x 1, 6 x 2, 8 x 2, 10 x 2, 10 x 3, 12 x 4, 15 x 5 | piece |
| 25 | 210/27 210/36 | 6 x 2, 8 x 2, 10 x 2, 10 x 3, 12 x 4, 15 x 5 | piece |
| 30 | 210/27 210/36 | 6 x 2, 8 x 2, 10 x 2, 10 x 3, 12 x 4, 15 x 5 | piece |
Dragnet
- fishing from drained ponds and storage ponds actively
- fishing large amounts of fish from a small volume of water
Design
- short net with deep bag
- useful in drained ponds, fish storage ponds, channels
- bag depth may be equal to net width, i.e. 1:1 (e.g. net width 3 m, bag depth 3m)
- bag is square or rectangle-shaped with beveled sides
- beveling of the bag starts at 1/3 or 1/2 or 2/3 of bag depth
- beveling determines possible amount of fish caught
Dragnet is useful in fish storage ponds
- using a small width, you can achieve a large depth, possibly catching a large amount of fish in a limited space
Standard sizes of dragnets
| Mesh size in mm | Thread thickness | Size – width x depth in m | Unit of measure |
|---|---|---|---|
| 6 | 210/6 | 3 x 2, 5 x 4, 6 x 3, 8 x 3, 10 x 4 | piece |
| 10 | 210/18 | 3 x 2, 6 x 3, 6 x 4, 8 x 3, 8 x 4,10 x 5 | piece |
| 15 | 210/36 210/48 | 5 x 3, 5 x 4, 6 x 3, 6 x 4, 6 x 5, 8 x 4, 10 x 5, 12 x 7, 15 x 7 | piece |
| 20 | 210/36 210/48 | 5 x 3, 5 x 4, 6 x 3, 6 x 4, 7 x 4, 8 x 4, 10 x 5, 12 x 7, 15 x 7,15 x 10, 25 x 10 | piece |
| 25 | 210/36 210/48 | 5 x 3, 5 x 4, 6 x 3, 6 x 4, 7 x 4, 8 x 4, 10 x 5, 12 x 7, 15 x 7,15 x 10, 25 x 10 | piece |
| 30 | 210/36 210/48 | 5 x 3, 5 x 4, 6 x 3, 6 x 4, 7 x 4, 8 x 4, 10 x 5, 12 x 7, 15 x 7,15 x 10, 25 x 10, 30 x 15 | piece |

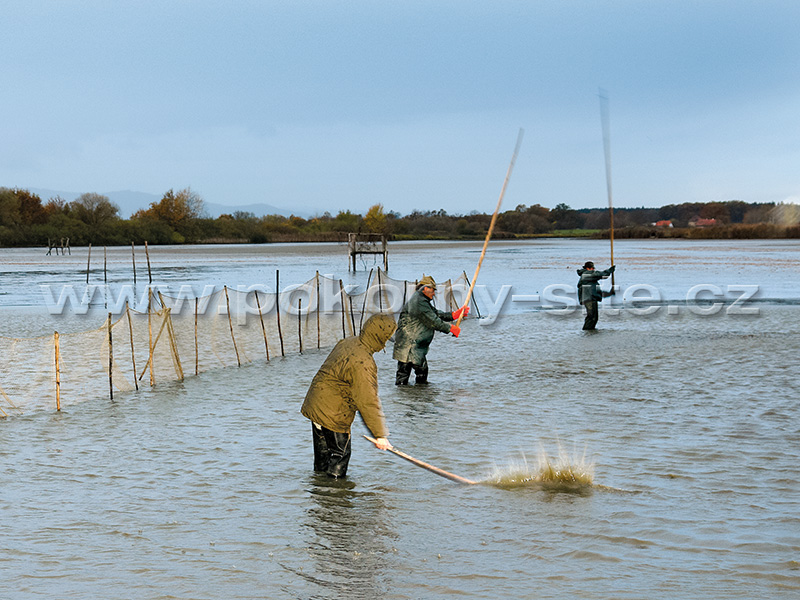

Fishing out the pond using dragnet
